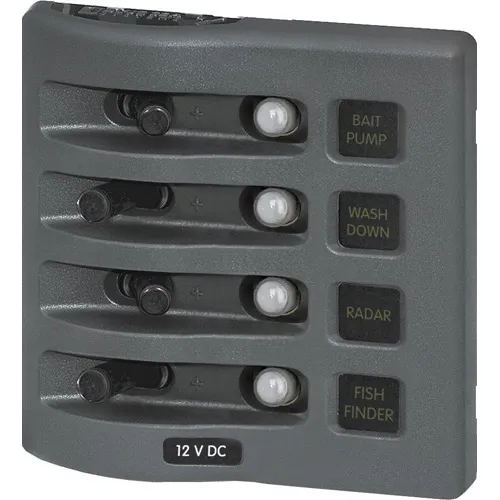

Product Details
＋
- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Available in 4 and 6 circuit models
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
Specifications:
Weatherproof: Waterproof
Positions: 4
Nominal Voltage: 12V DC 24V DC
Circuit Protection: Circuit Breaker
Maximum Amperage: 15A @ 12V DC (per circuit), 9A @ 24V DC (per circuit)
Panel Cumulative Rating: 45A
Backlit Label: Green LED
Backlighting Amperage: 10mA /Illuminated Circuit
Backlighting Voltage: 12 or 24V DC
Material: Reinforced Polycarbonate
Height: 4.30in (109.22 mm)
Width: 4.25in (107.95 mm)
Depth: 3.50in (88.9 mm)
Weight: 0.97lb (0.44 kg)
