Waldmann 114045000-00801392, LINURA.edge LED Machine Light, 40.7 in., 22-26V DC
$
68.71
$
52.85
Title
Please select combo product attributes
The combo subtotal is $,SAVE
$
Unavailable
Quantity
-
+
ADD TO CART
BUY IT NOW
DESCRIPTION
Waldmann Part Number: 114045000-00801392

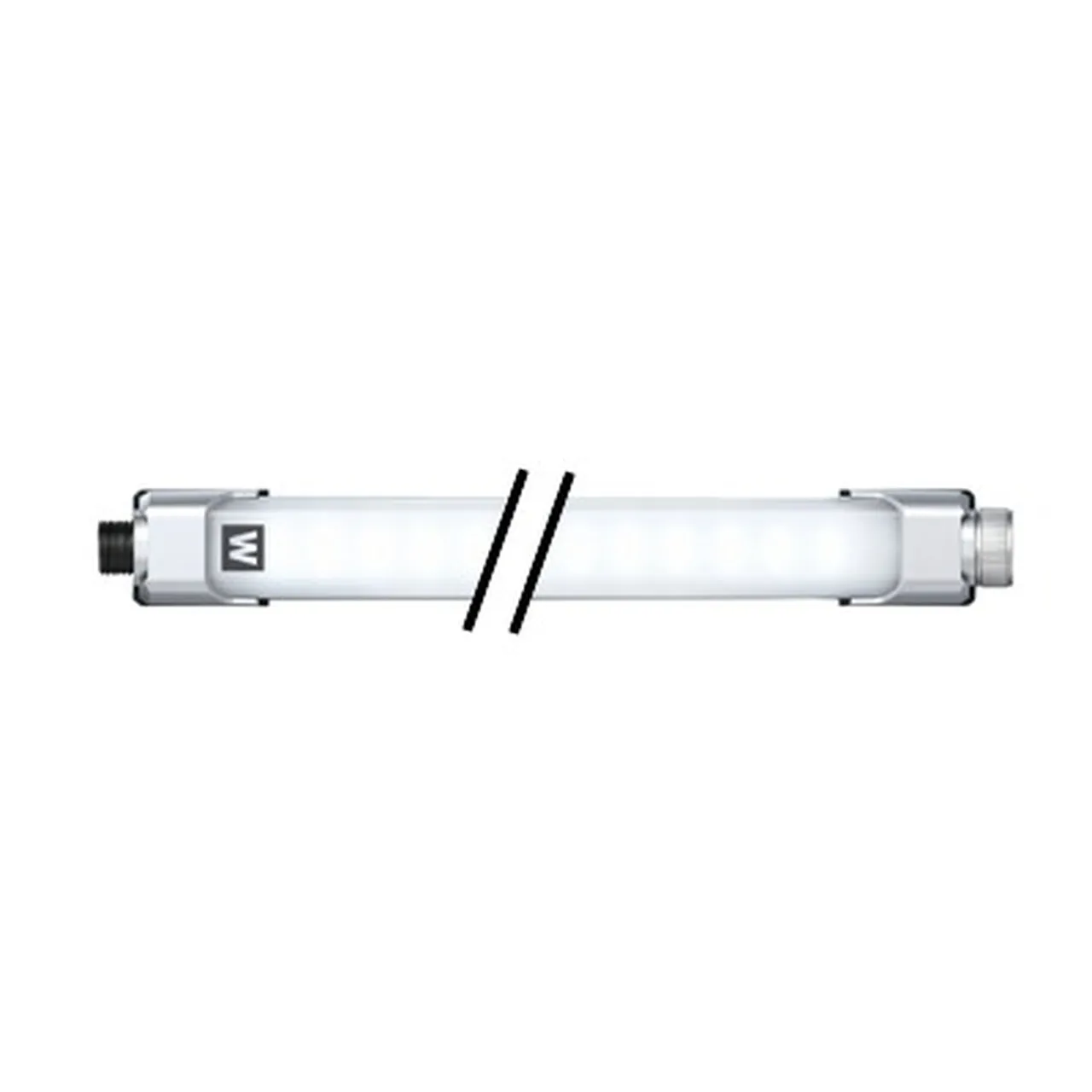

Waldmann's LINURA.edge LED surface-mounted lighting system is designed for applications with automated manufacturing in mind. With strength, flexibility and many options, its narrow profile and high intensity light make the LINURA Series ideal for use in conveyor or inspection lines, vision systems and any other automated manufacturing environment. The M12 connection and straightforward mounting system also make it extremely simple to connect and operate.
*Brackets Included, Cable/Connection Sold Separately
- Slim design requires less space
- Quality smooth, even light distrubution
- Robust housing is built to last
- Latest LED technology
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | Waldmann |
| Series: | LINURA.edge |
| Model: | LEA 2100/850/S |
| Current AC/DC: | DC |
| Voltage: | 24 |
| Length (in): | 40.7 |
| Width (in): | 1 |
| Bulb: | LED |
| Mounting Type: | Bracket |
| Wattage: | 21 |
| Lumens: | 2205 |
| Color Temperature: | 5000K |
| Color Rendering Index (CRI): | 80 |
| Lens Material: | Acrylic |
| Lens Style: | Satine |
| Protection Index: | IP54 |
| Operation: | Switchable with external control |
| Connection: | No Cable |
| Certification: | ETL/cETL, CE Approved |
| Product Warranty: | 5 Years |
ACCESSORIES
Connection Options:
|
CONNECTOR/CABLE: 16' cord with 5-pin, A-coded for 24V, M12 connector, straight |
|
|
CONNECTOR/CABLE: 16' cord with 5-pin, A-coded for 24V, M12 connector, 90 deg angled |
|
|
CONNECTOR: M12 Connector, A-coded, 4 pin, male (for 24V) |
|
|
CONNECTOR: M12 Connector, A-coded, 5 pin, male (for thru-wire) |
|
|
Capacitive contact (manual) sensor with M12 plug connectors |
|
|
Laser/Distance time-of-flight (automatic) sensor with M12 plug connectors |
|
Power Options:
|
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz |
|
|
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz |
|
|
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz |
|
RESOURCES
Direct from Manufacturer: Usually Ships within 2-3 Business Days
