Home Lighting Drone-Mounted LED Systems
Product Details

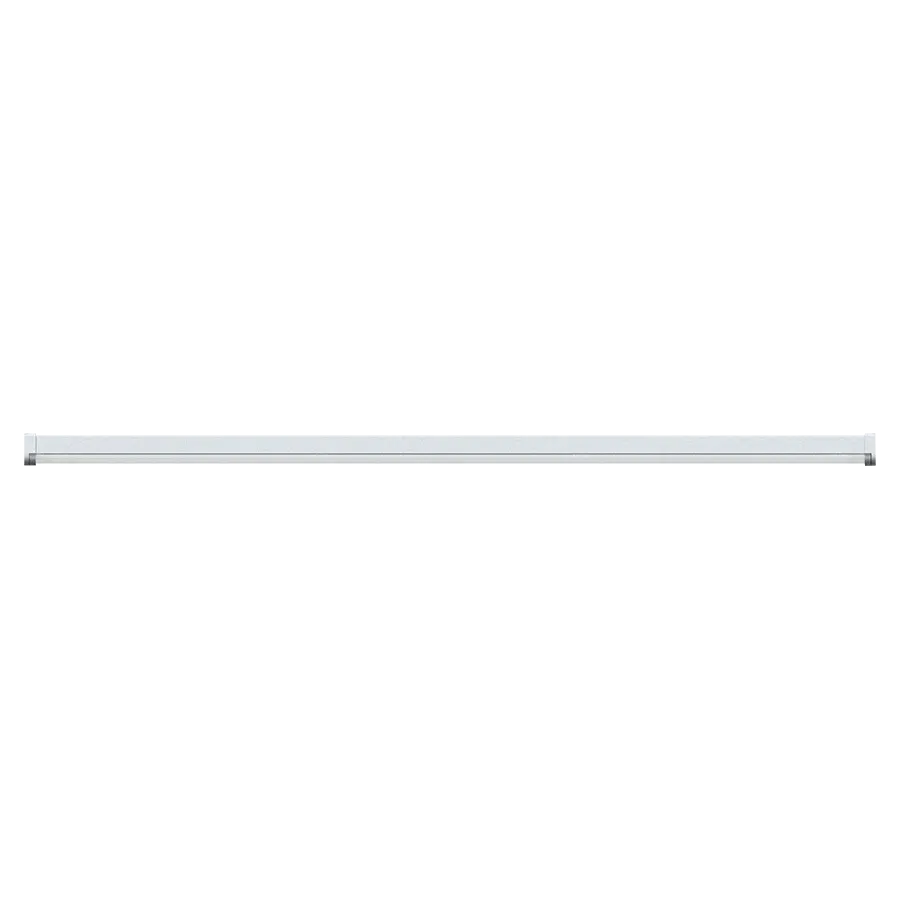

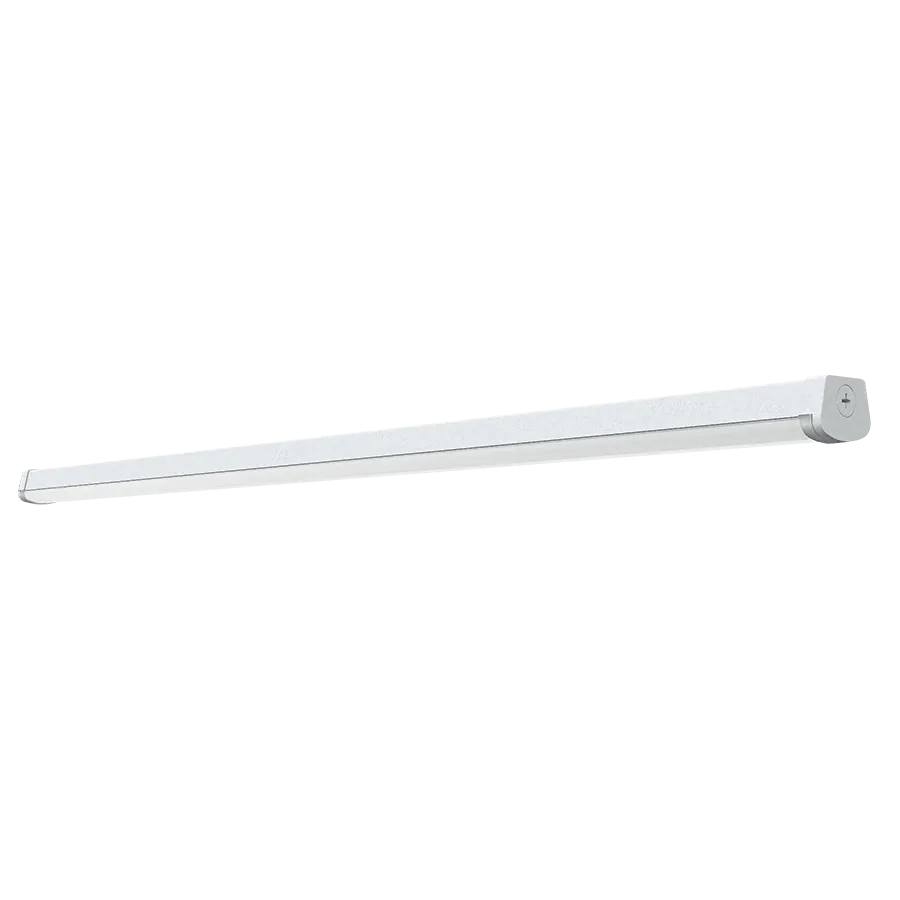

4FT 36W Eco Friendly Strip Light

The C-STRIP is made of eco-friendly materials and comes in two sizes with selectable features. The 4' & 8' C-STRIP are engineered for 120-277V use and boast field-adjustable color temperature and wattage. The C-STRIP can be surface mounted or suspended on chains. Hardware is included for both options.

  • Field-adjustable wattages: 18/27/36W
  • Field-adjustable CCT: 3500/4000/5000K
  • Microwave occupancy sensor battery backup options available.
  • Standard J-Box adapter. V-hooks are optional accessory for suspended mounting and Joiner Kit available for daisy chain use
  • 0-10V dimming
  • 5-Year, no compromise warranty
Spec Sheets

Info


Wattage 18/27/36W
Lumen 2,748-5,487lm
Color Temp. 3500K-5000K
Efficacy 145.6-157.2 lm
CRI 84-86
L70 Lifespan 100,000
Reflector Refractive Lens
Lens Acrylic Lens
Mounting Surface mount and VHOOKs standard. Fixtures designed for end to end connection. Through wiring kit not included.
Housing Sustainable, biocomposite resin manufactured with coffee chaff, waste seashells, and recycled plastic.
Finish Naturally occurring, beige, speckled pattern
Additional Info
Electrical
Driver



36W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 120V: 0.31A, 208V: 0.18A, 240V: 0.15A, 277V: 0.13A
27W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 120V:0.22A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
18W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 120V:0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A



Power Factor 99.6% at 120V, 96.9% at 277V
THD
5.93% at 120V, 11.83% at 277V
Dimming Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
RAB C-STRIP CS4 4FT 36W Strip Light Selectable Wattage & CCT
  • 4FT
  • SelectableCCT

$ 0.00

$ 83.00

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
