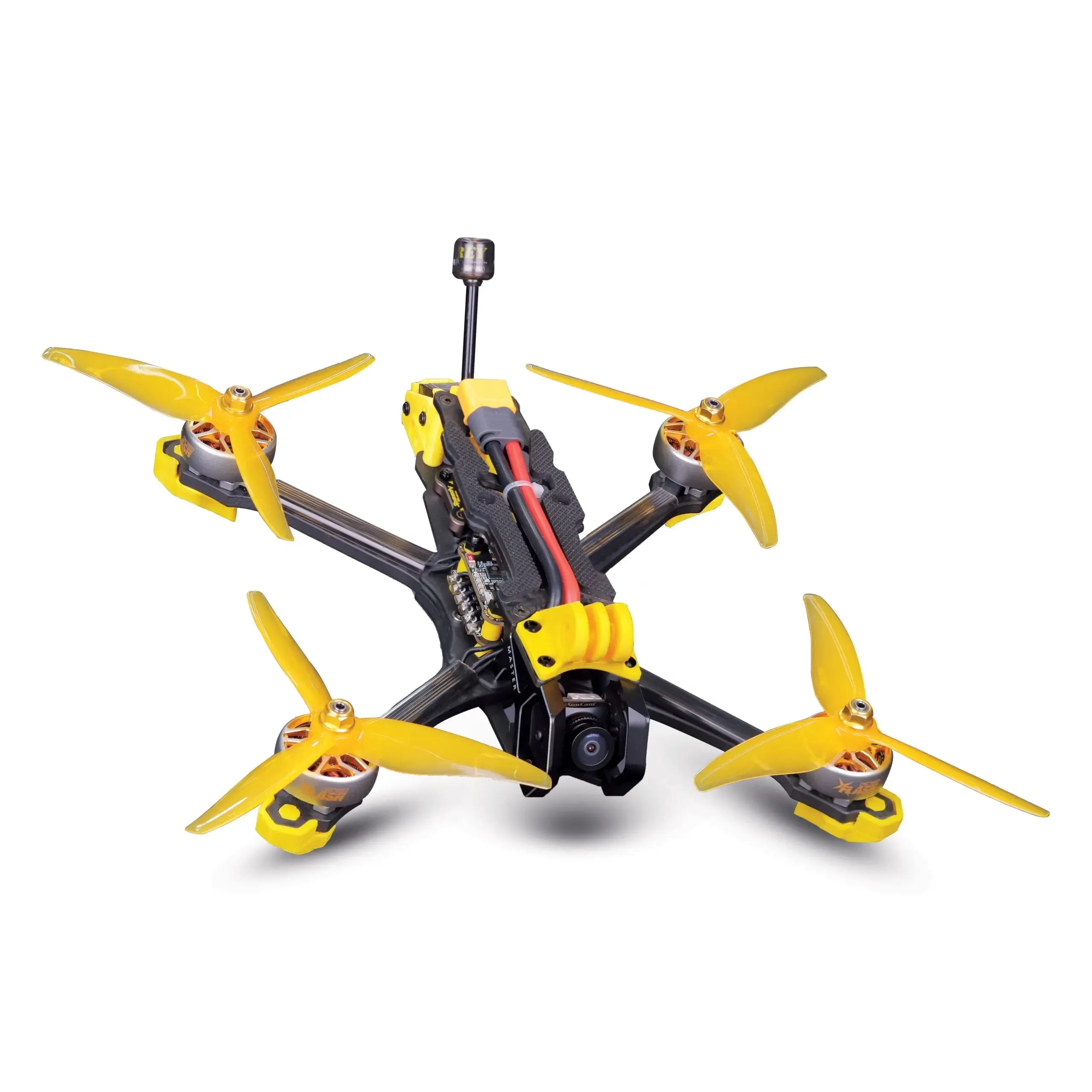

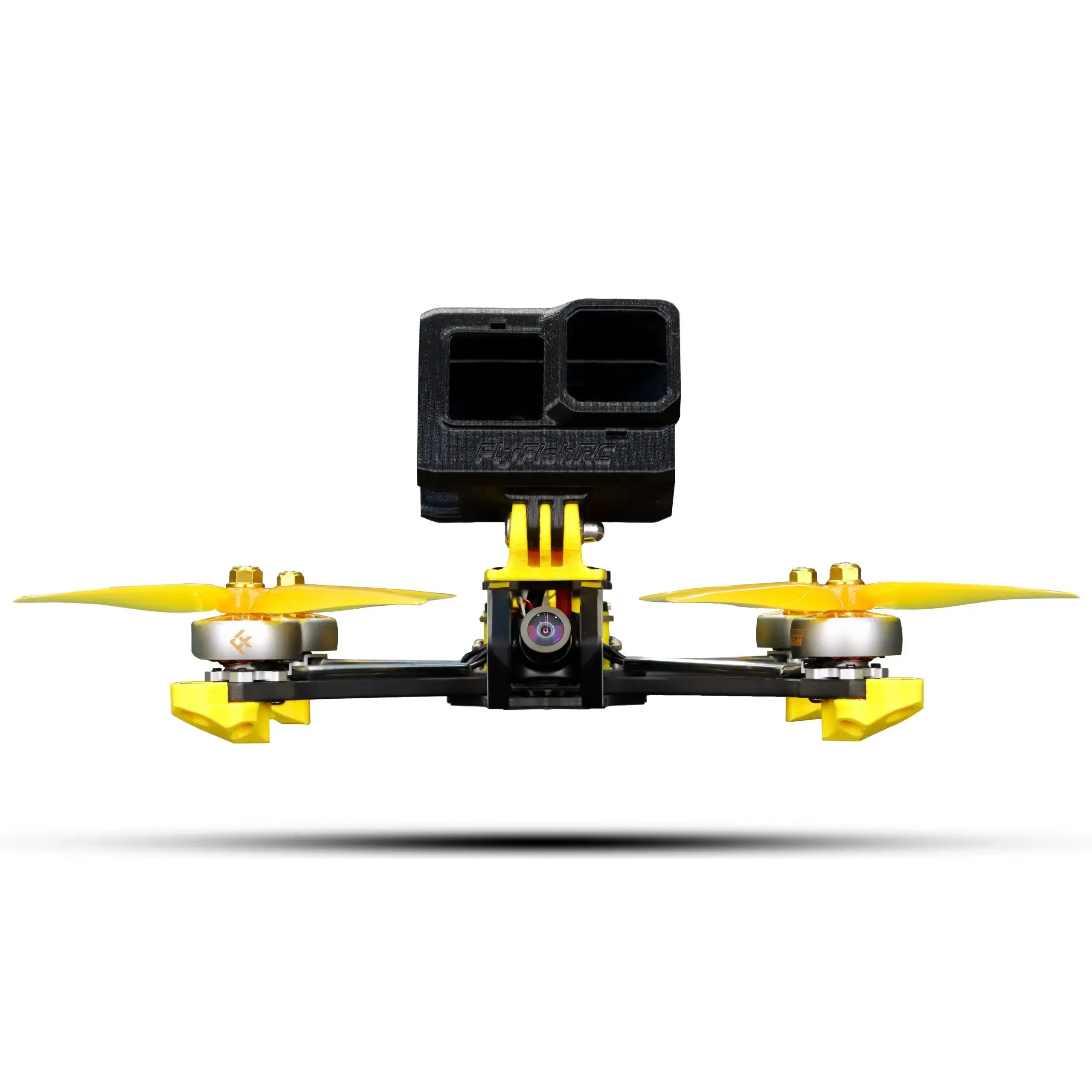

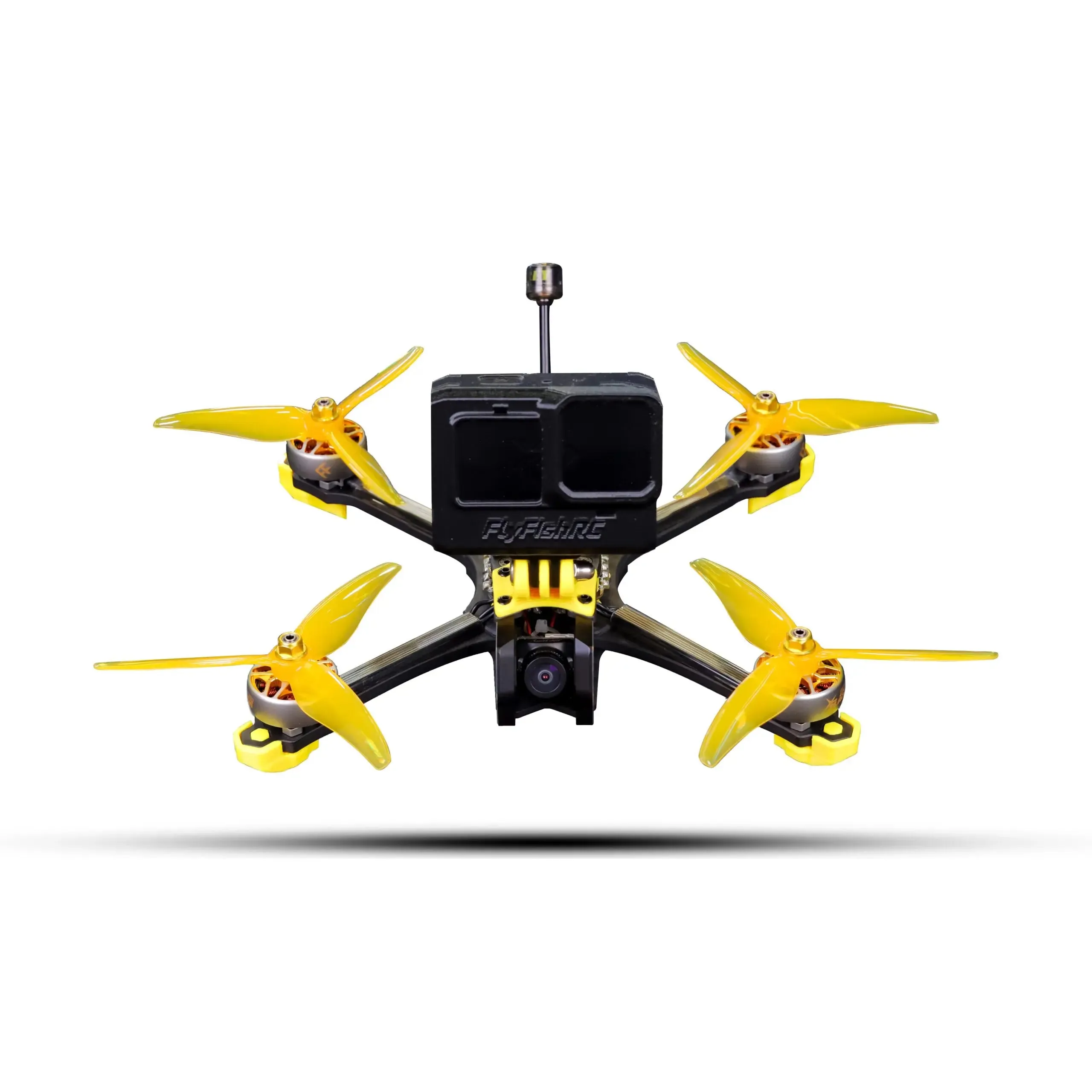

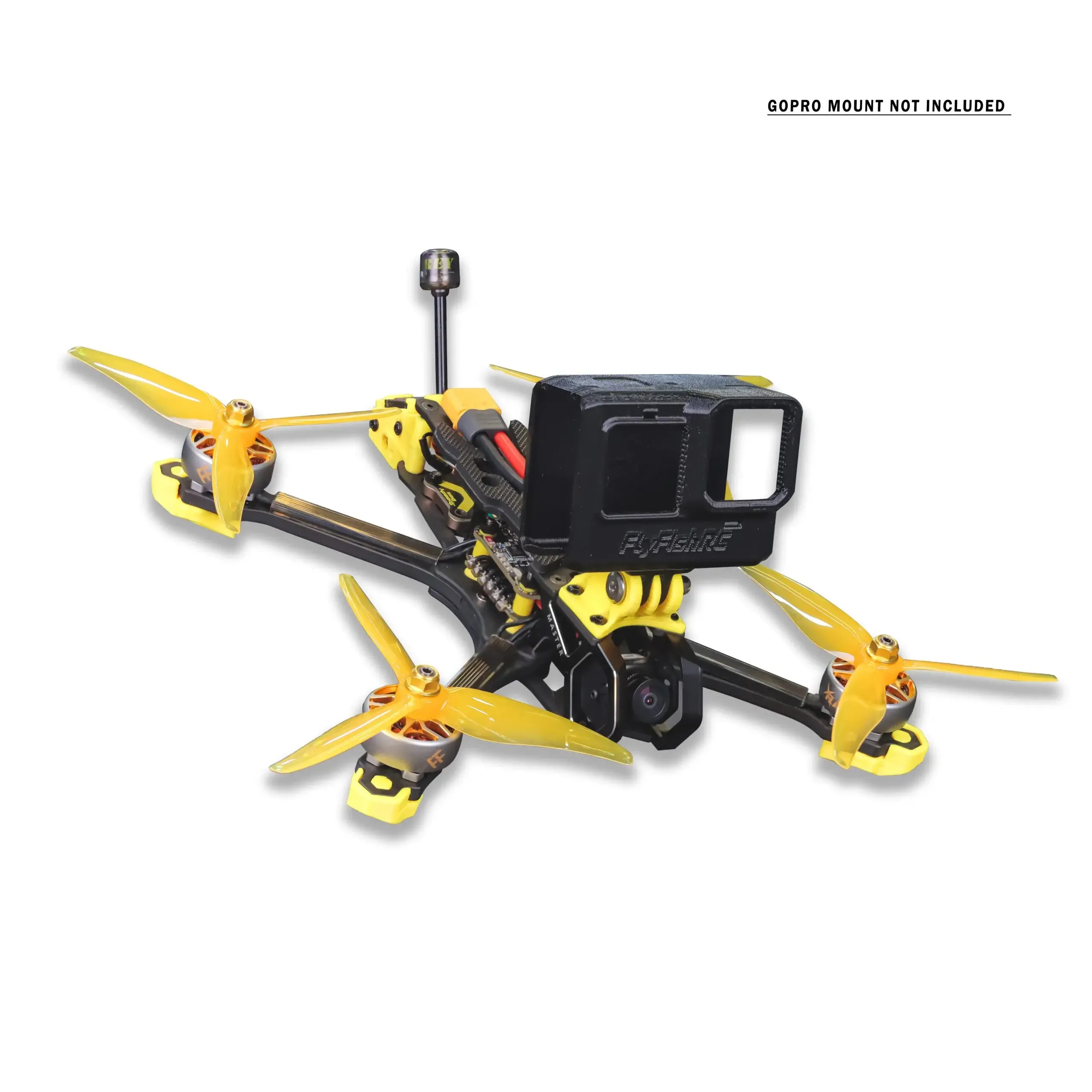

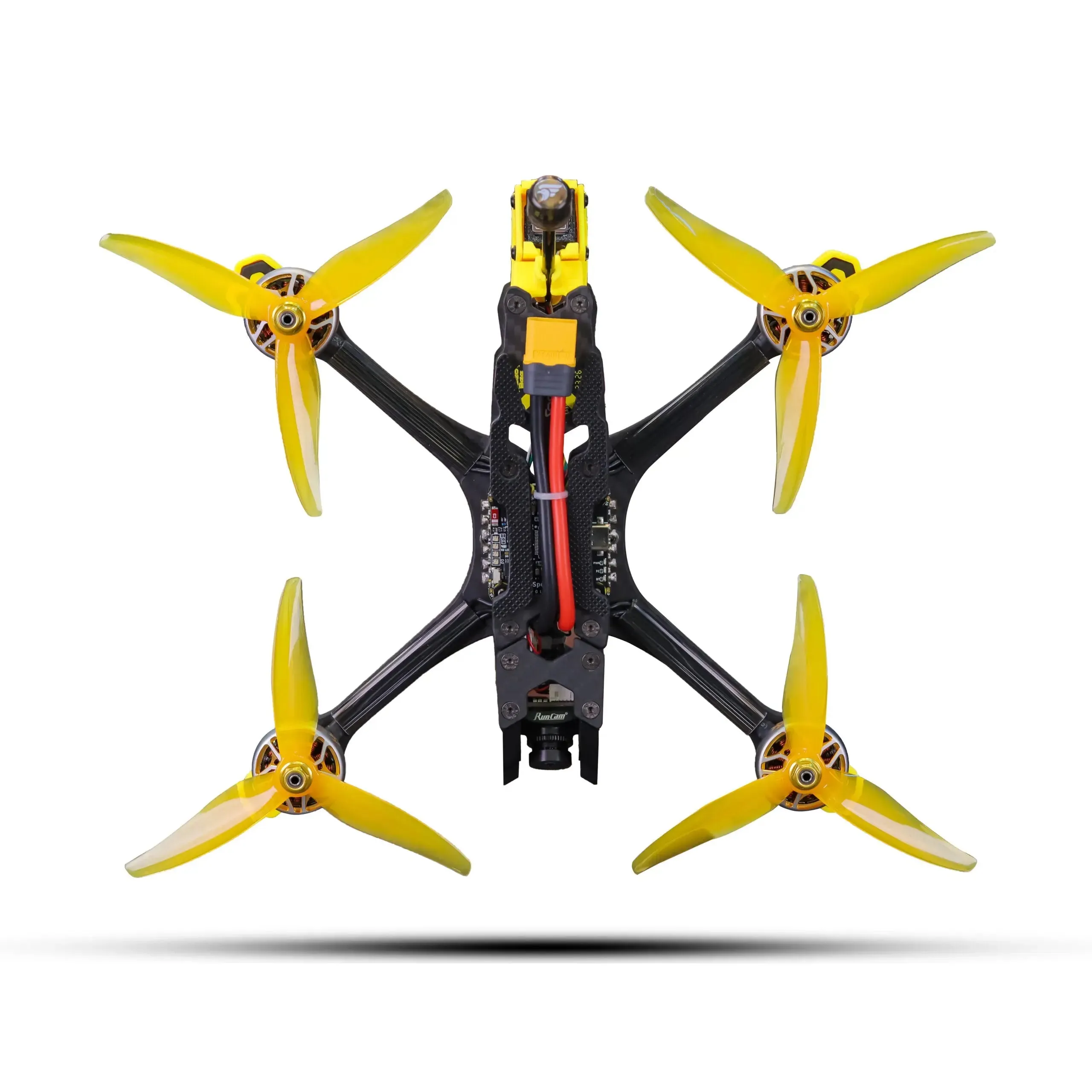

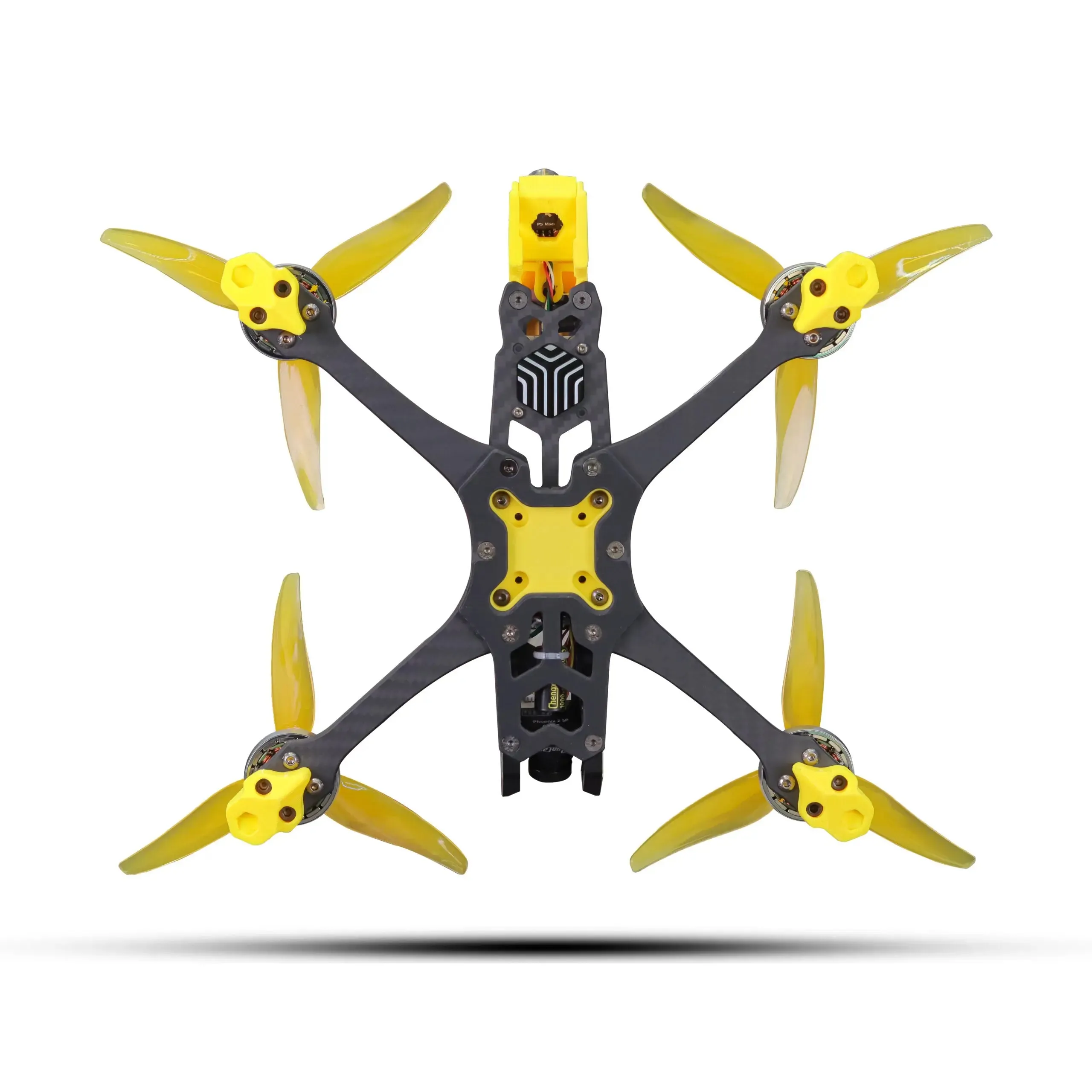

Master 5 Freestyle 4-6s Analog FPV Drone – PNP
Features:
• Replaceable arms for quick disassembly without taking apart the whole frame.
• Universal GOPRO installation bracket so that you can use any GoPro Camera and Action Camera.
• Honeycomb-shaped aluminium alloy cooling speeds up the heat dissipation under the VTX.
• Innovative Independent Anti-shock stack Fixed Structure.
• Honeycomb-shaped CNC 7075 magnesium aluminium alloy camera mount side plate.
• Configure your FC and ESC via Bluetooth on your phone and Experience wireless fully configuration anytime & anywhere.
Specification:
Model: 5 inches Frame
Wheelbase: 222mm
Size: 225*210mm
TPU Colour: Yellow
Arm thickness: 5mm
Prope size: 5inch
MCU: STM32F405
USB Port Type: Type-C
Supported Fc Firmware: BetaFlight(Default),INAV
UART: 6sets
Power input: 3-6s lipo
Firmware: BLHeli_S JH50
Configuration: Wireless Configuration
Continuous Current: 50A*4
Burst Current: 55A(5seconds)
ESC Protocol: DSHOT300/600
Input Voltage: 3-6S Lipo
Capacitor: 35v 1000uf low ESR
Output Power: PIT/25mW/200mW/400mW/800mW
Input Voltage: 3.7V-5V
Antenna: MMCX
Image Sensor: 1/2.8″ Starlight COMS Sensor
Horizontal Resolution: 1500TVL
Signal System: NTSC/PAL
Power: DC 5-36V
Dimension: 19mm
Gain: 2.82dBi
Frequency: 5.8GHz
Polarization: RHCP
Connector: SMA
Model: Flash 2406
KV: 1950KV
Input Voltage: 6S Lipo
Colour: Gold
Size: 51466
Colour: Bumble Bee
Type: tri blade
Dimension: 98*10MM
Colour: Yellow
PACKAGE INCLUDE:
1× Master 5 V1 Frame
1× F405 V3 Flight Controller
1× F405 BLS 50A 4-in-1 ESC
1× TX800 VTX
1× Phoenix 2 SP V3
1× 5.8 GHz SMA Antenna V2
4× FlyfishRC flash 2406 1950 KV Motor
4× Propeller
4× Wire protector tube Set
2× 250mm Battery strap
1× TPU Base Mount
Recommended Parts:
Radio Transmitter:
•
•
•
•
•
Radio Receiver:
Goggles support – Analog
Video Receiver
Battery Support 4S-6S Lipo (suggested: 1300mah-2000mah)
4s lipo Battery
6S lipo Battery
Battery Charger
Antenna for Goggles:
Action Camera:
Accessories:
