What a convenient product! This charger is tailored for . Not only a charger, but also a cell voltage tester! Thanks to the on-board LCD display. The charge current is up to 1A, which improved its efficiency and shorted the charging time. By using BT2.0 connector, it would be very convenient for charging PH2.0 1S battery!

Note: PH2.0 Battery Charger and Voltage Tester has come, click to reach.

BULLET POINTS

• Specially made for our BT2.0 300mAh 1S battery. Thoughtful design of BT2.0 connector, so you could charge 1S battery of PH2.0 cable by using the adapter cable.
• Supports to charge two batteries at the same time, its charging current has upgraded from 0.5A to 1A, which makes the charge speed increase to 2 times.
• Ingenious design of USB input, it is very convenient for charging. Compatible with mobile phone adapter, computer, etc.
• Have two functions of testing voltage and charging in one, compact and easy to carry.

INSTRUCTION

Power-on state

• OUT1/OUT2 can be charged simultaneously
• Input : USB-5V/2A
• Output : 4.35V/1A
• The red light indicates charging, and the green light indicates full charged

Power-off state

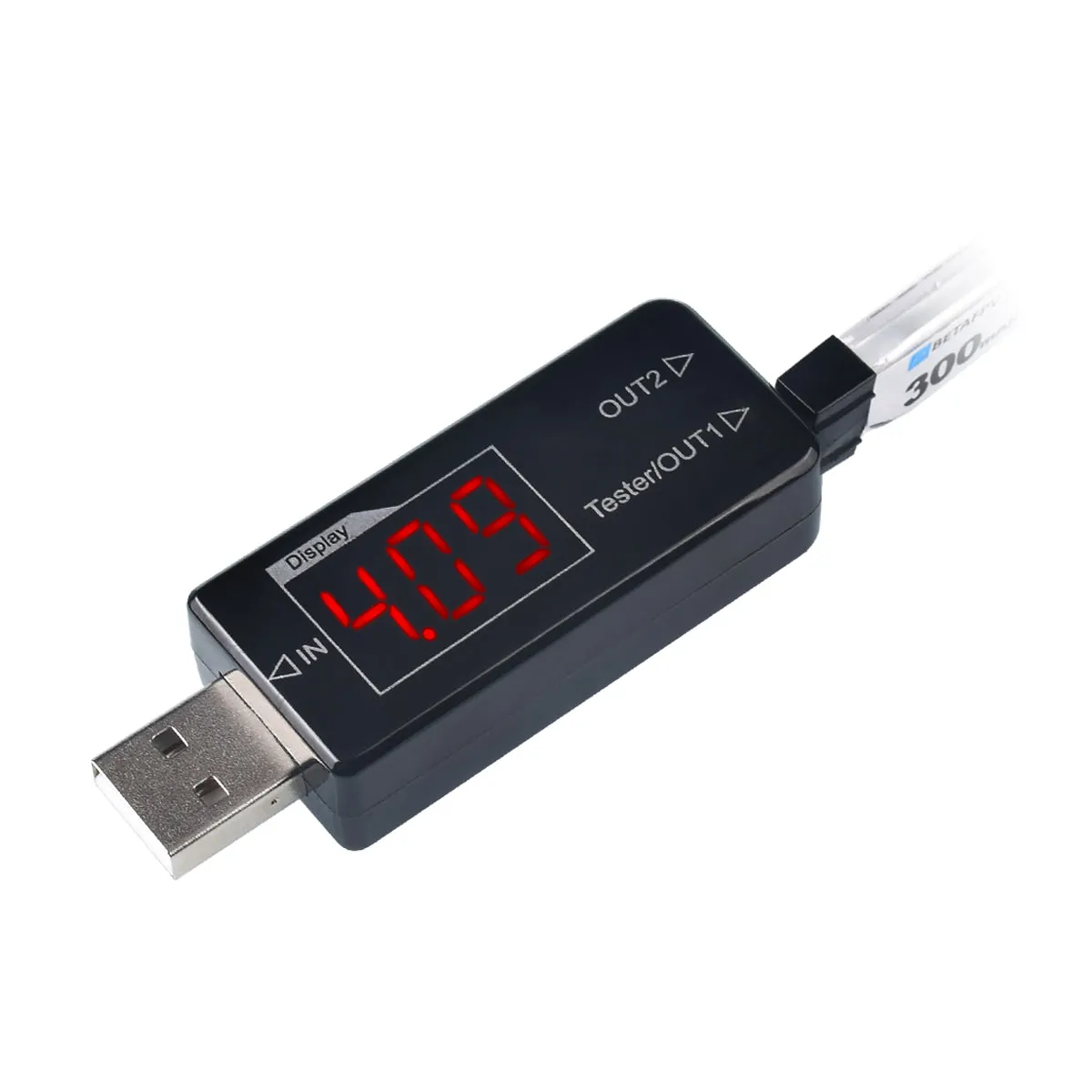

• OUT1 can be used as battery tester while OUT2 does not possess any function

SPECIFICATIONS

• Model: BT2.0 1S Battery Voltage Checker
• Plugs: BT2.0
• Voltage: Works with regular and HV battery packs
• Voltage cut off: DC 2.45-4.70V
• Voltage range: DC 2.50-4.70V(1S)
• LCD: Red

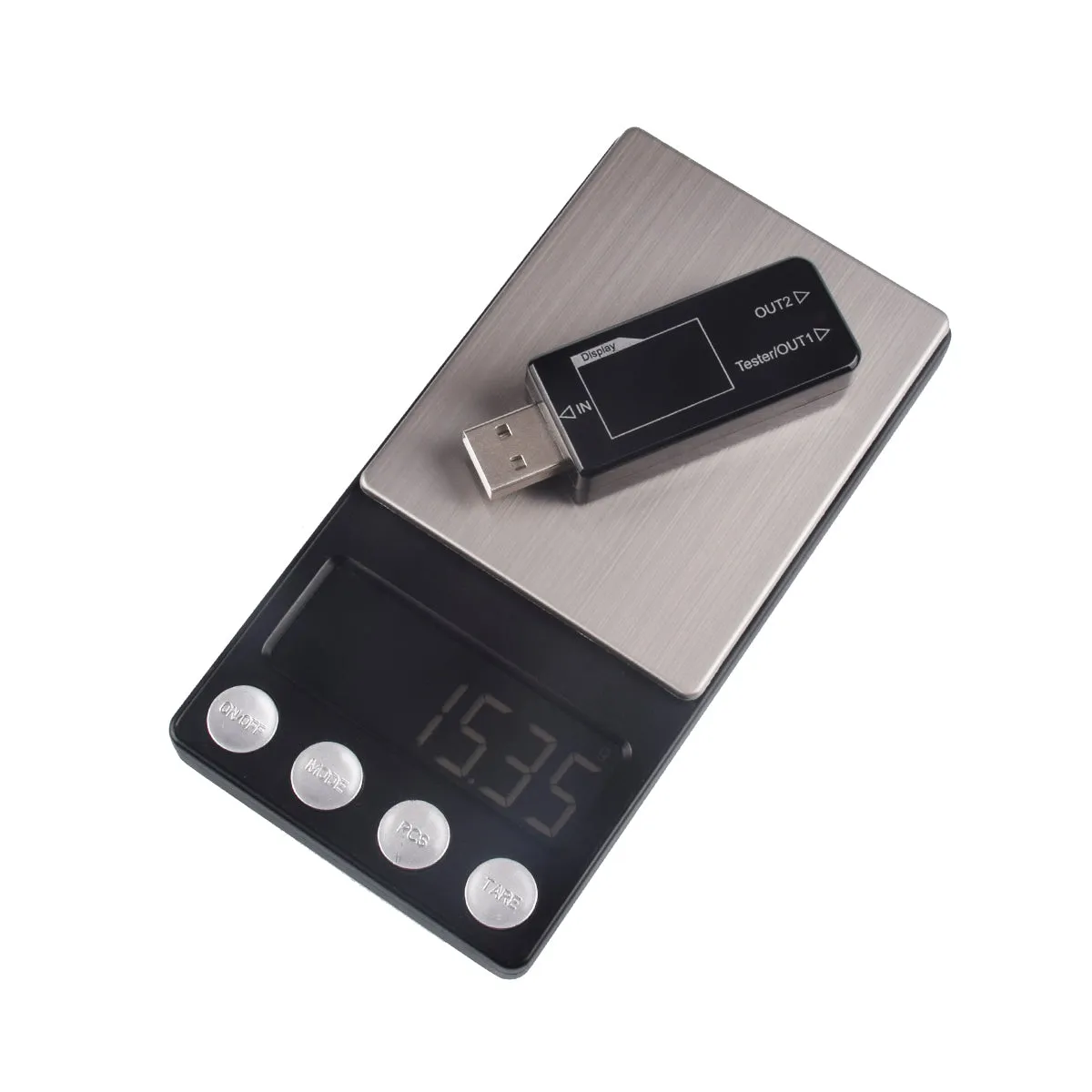

• Weight: 15.35g
• Dimensions: 66.3*23.6*14.4mm
• Working tem: -20~75℃
• Storage tem: -25~85℃

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector decreased internal resistance of connector effectively to allow more current that is transferred, which means it supports 9A continuous current(15A burst) offers stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A You can enjoy more flight time without disturb of low voltage warning through solving the problem of voltage sag. For more instruction,  to reach.

There is a graph of comparison between BT2.0 connector and PH2.0 connector (solid pins version) in BETAFPV 1S 300mAh battery. The discharge current is 9A in this testing. You could see that it has double time (about 2minutes) with BT2.0 connector.

Meanwhile, we provide 200 sets of BT2.0 300mah 1S battery(2pcs) as a free gift for everybody. Click here to grab  / .

Much more choices of BT2.0 series accessories.
We know some of pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 Power whoop connectors for those people who wanna convert the PH2.0 connector to BT2.0 connector.

PACKAGE

• 1 * BT2.0 Battery Charger and Voltage Tester
