Description

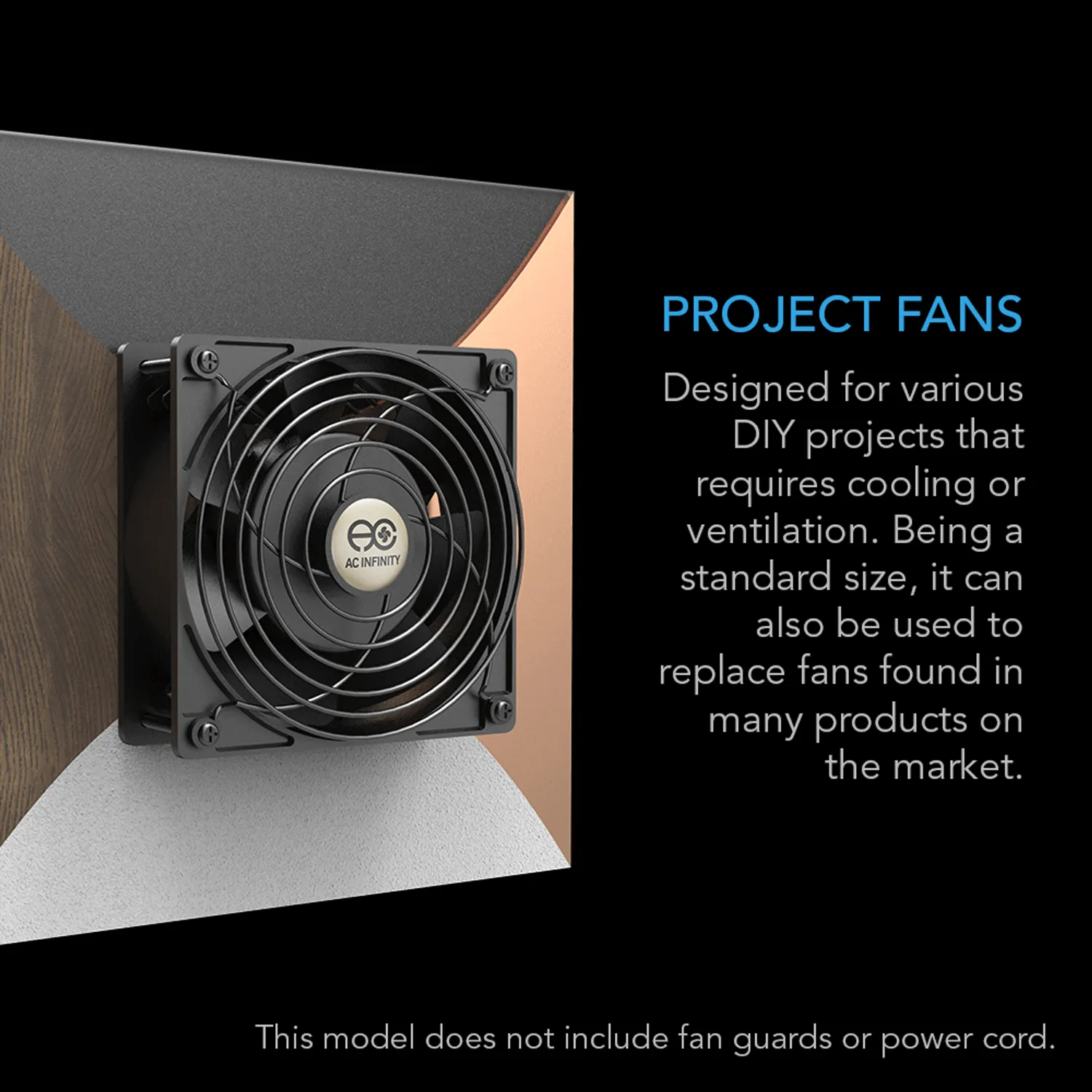

Designed for projects that require cooling or ventilation, or as a replacement fan for various products.

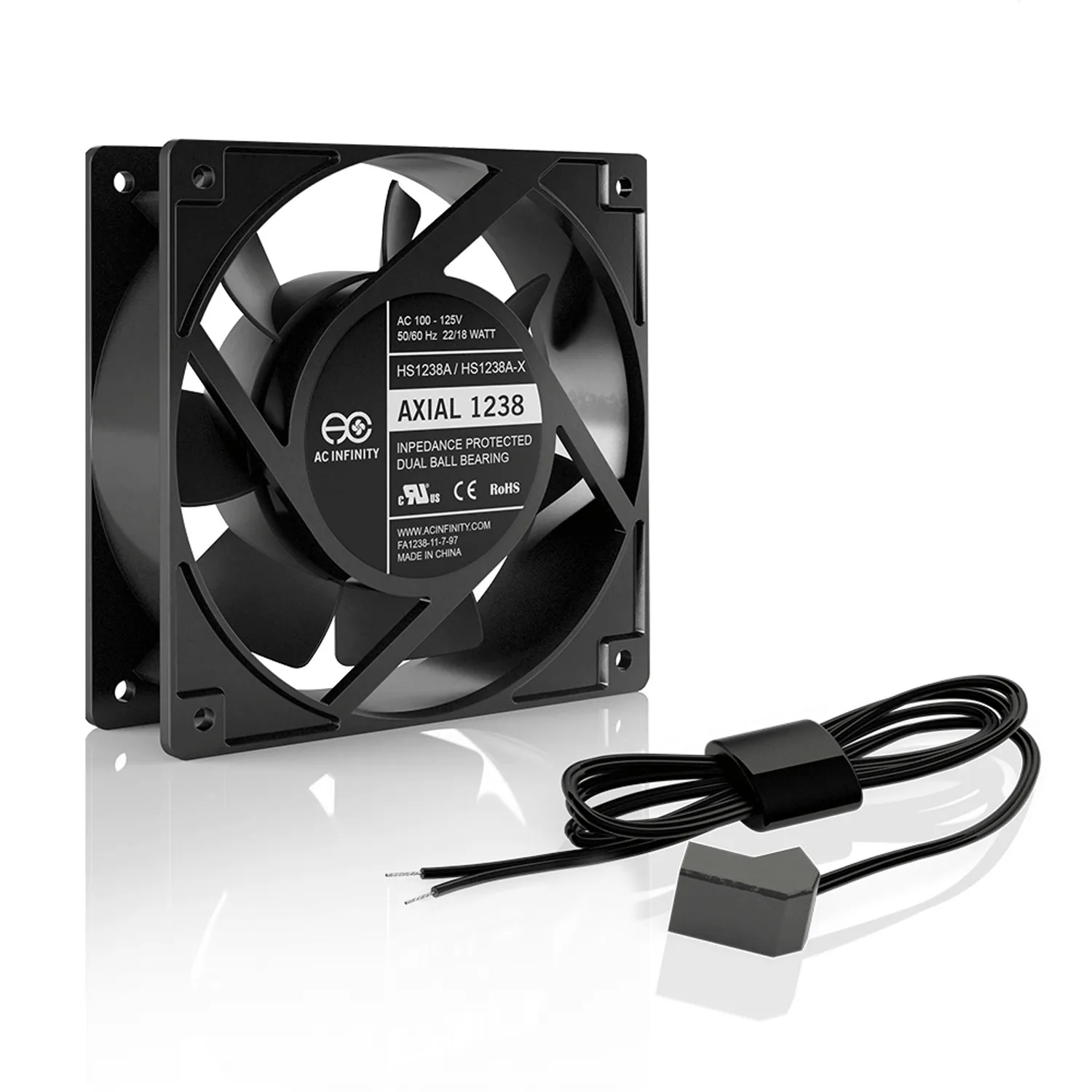

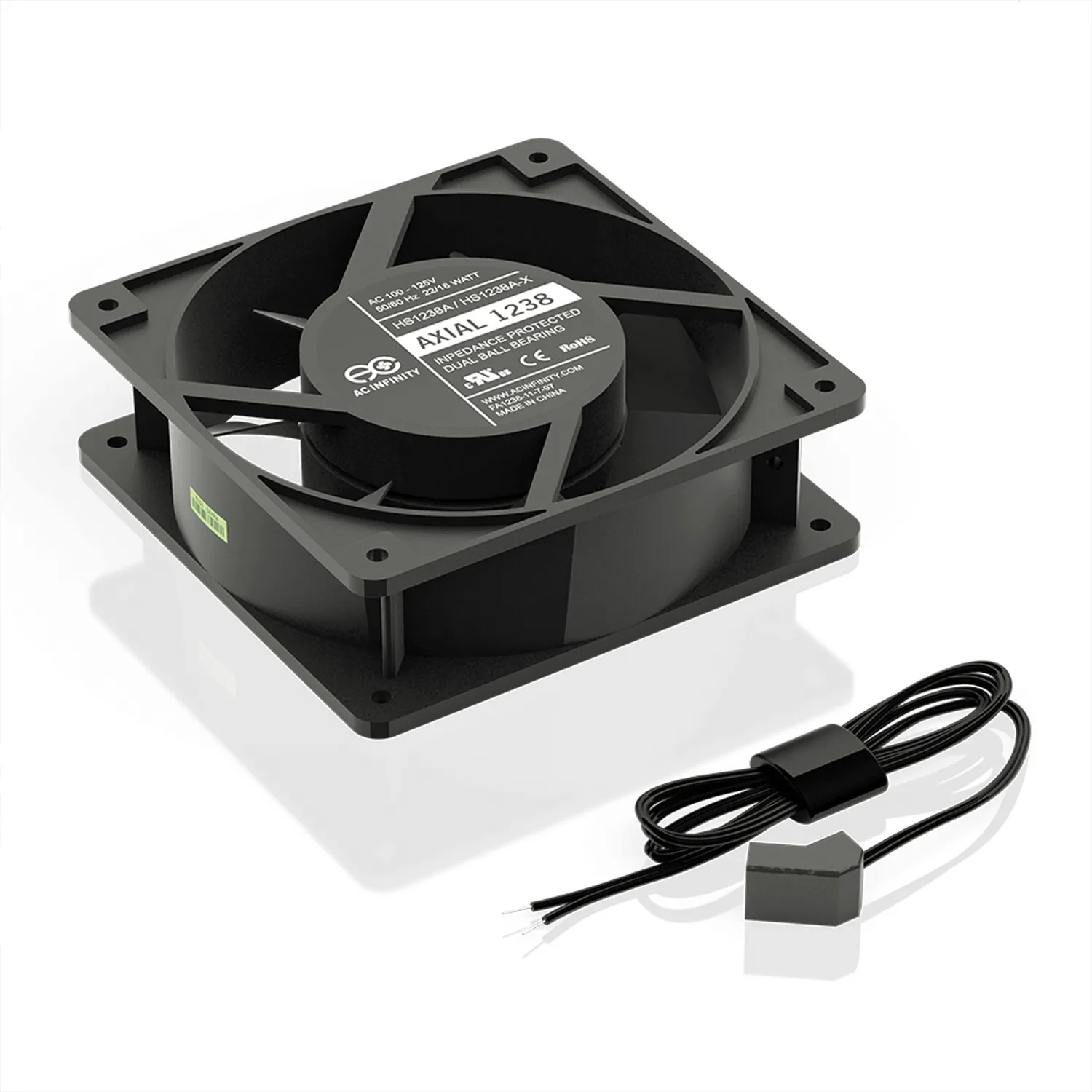

Terminal connectors are included, and it also comes with an optional wire-leads cord adapter. For the same kit with a plug cord and grilles, see model HS1238A-X.

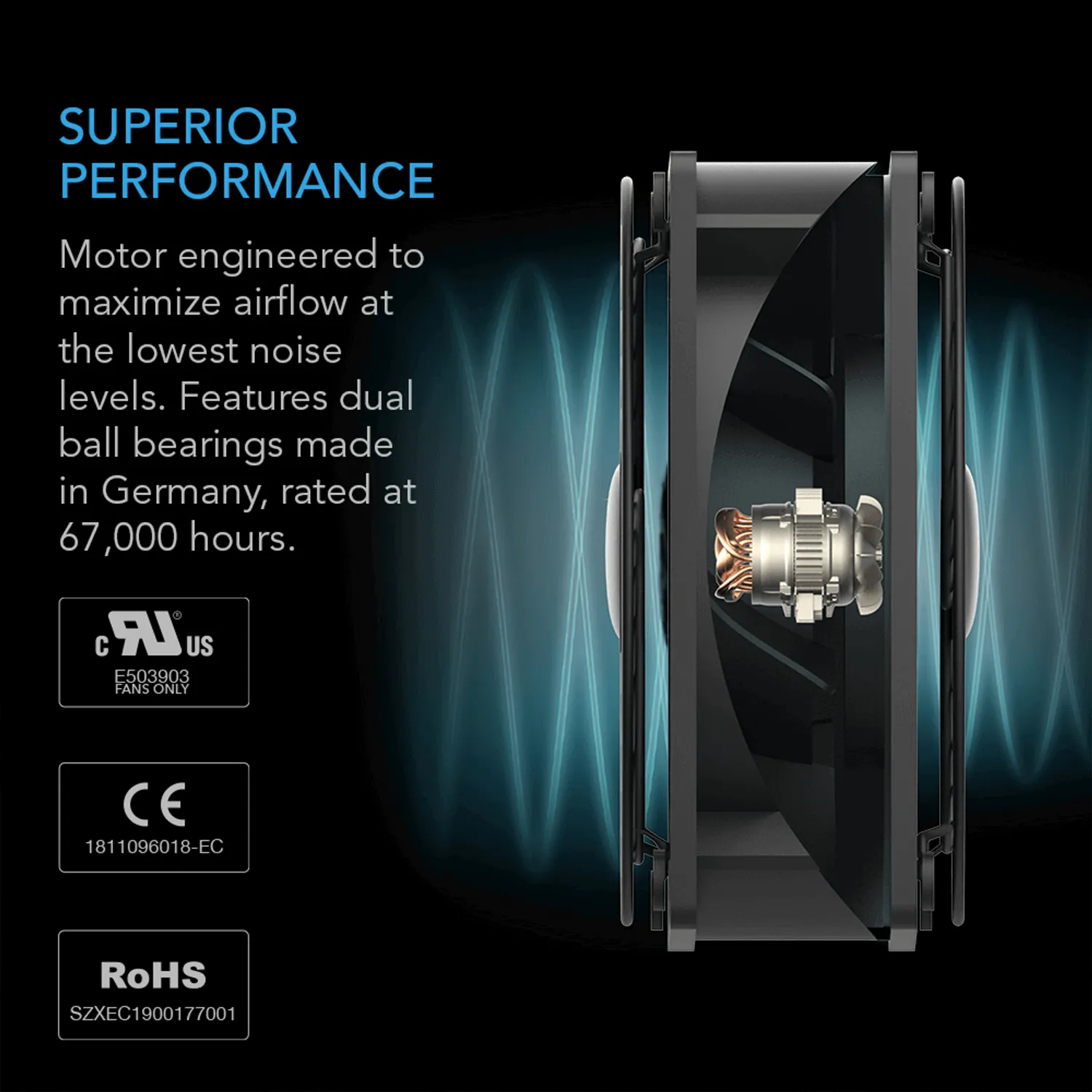

This UL-certified fan features dual-ball bearings and has a lifespan of 67,000 hours. It is capable of being mounted in any direction.

High Speed: This model is designed to maximize airflow and may be too loud for some applications.

Dimensions: 120 x 120 x 38 mm (4.7 x 4.7 x 1.5 inches) | Voltage: 100 to 120V AC | Airflow: 110 CFM | Noise: 47 dBA | Speed: 2600 RPM

The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The high-speed 120 by 120 by 38 millimeter AC axial fan can be operated on 100 to 120V AC and is housed in a die-cast aluminum with thermoplastic blades. It has long-life dual ball bearings, allowing the fan to run continuously for 67,000 hours and can be mounted in any direction. It comes with terminal connectors but can be converted to AC wire-leads with the included power cord adapter. Please note that fan guards or a plug cord are not included, and for those options, please refer to model HS1238A-X. The AC Infinity axial fan is UL recognized under certificate E503903, and is also CE and RoHS certified.

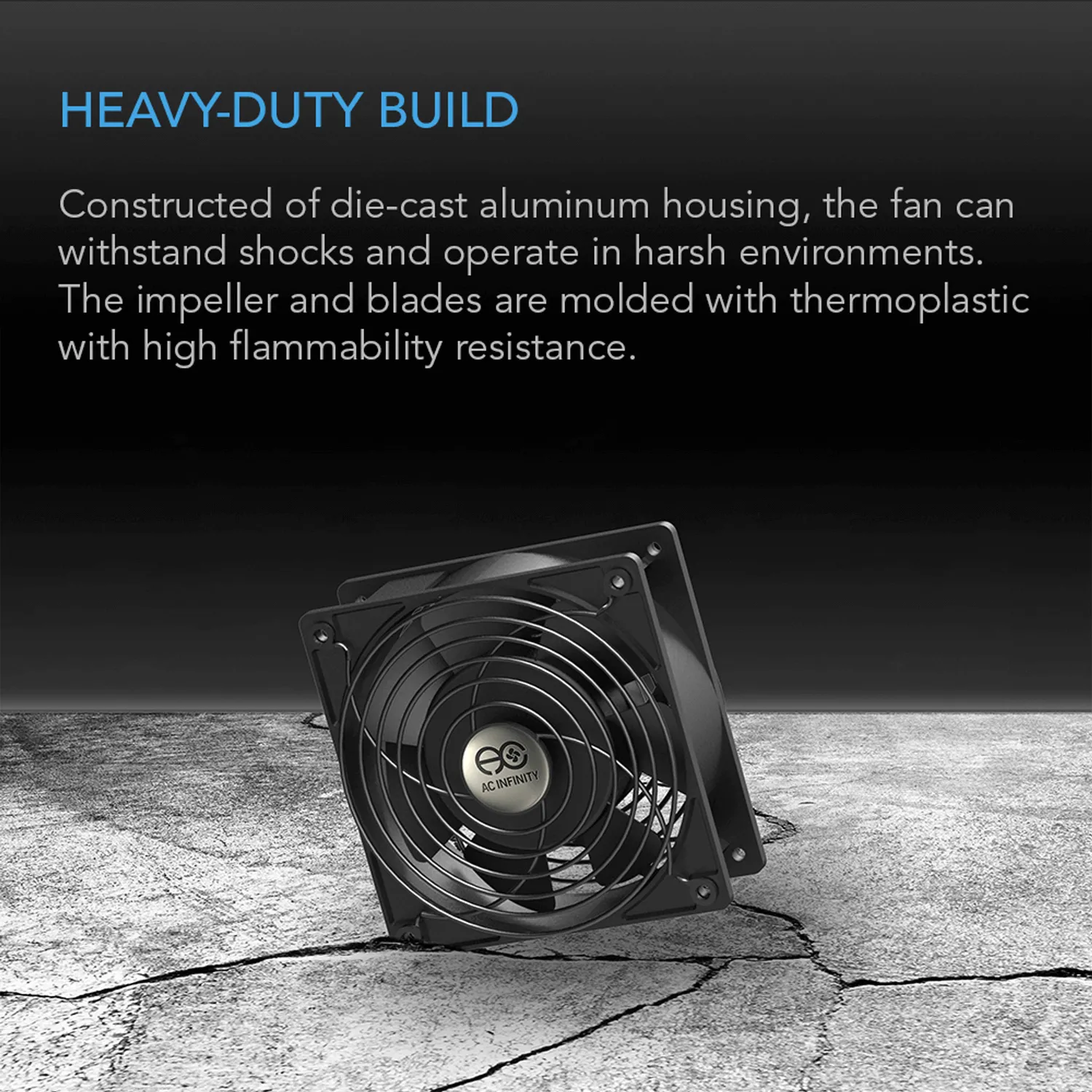

The fan's housing is constructed of die-cast aluminum painted black, making it able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic and meet UL 94 standards for resistance to flammability. The impedance-protected motors contain windings that have a higher resistance to heat during a rotor lock.

This high-speed fan is suitable for applications where maximizing airflow is the main objective and a higher noise level is tolerable. Popular uses include tanning beds, LED signs, server racks, industrial machinery, and arcade systems, among others. Due to its standard industrial size, it can be used as a replacement fan in various Samsung and Eaton servers and UPS systems.

Specifications

Product Identification

Manufacturer: AC Infinity

Product Model: HS1238A-W

UPC Code: 854759004280

ASIN: B004YTSB7C

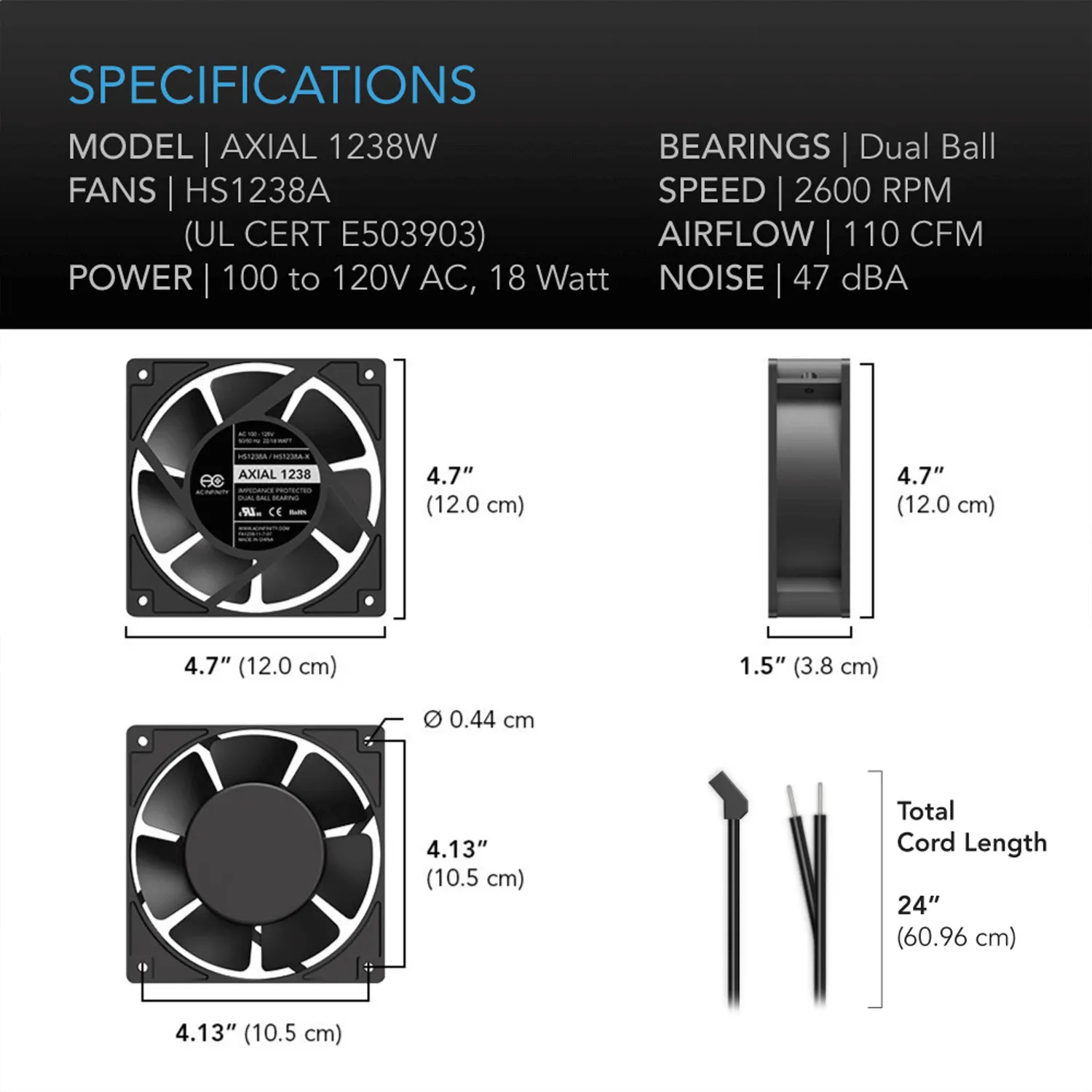

Product Dimensions

Total Dimensions: 4.7 x 4.7 x 1.5 in. (120 x 120 x 38 mm)

Hole to Hole Distance: 4.13 x 4.13 in. (104.8 x 104.8 mm)

Screw Hole Size: Ø 0.17 in. (Ø 4.3 mm)

Product Performance and Technical Specs

Fan Model: HS1238A

Total Airflow: 110 CFM

Total Noise: 47 dBA

Speed: 2600 RPM

Operating Voltage: 100-120V AC

Power: 18 W

Current: 0.06 A

Static Pressure: 9.1 mm-H2O

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:
